Factory direct sales Mini 3G 1080P HDMI to SDI SD-SDI HD-SDI 3G-SDI HD Video Converter With Power Adapter In Retail package

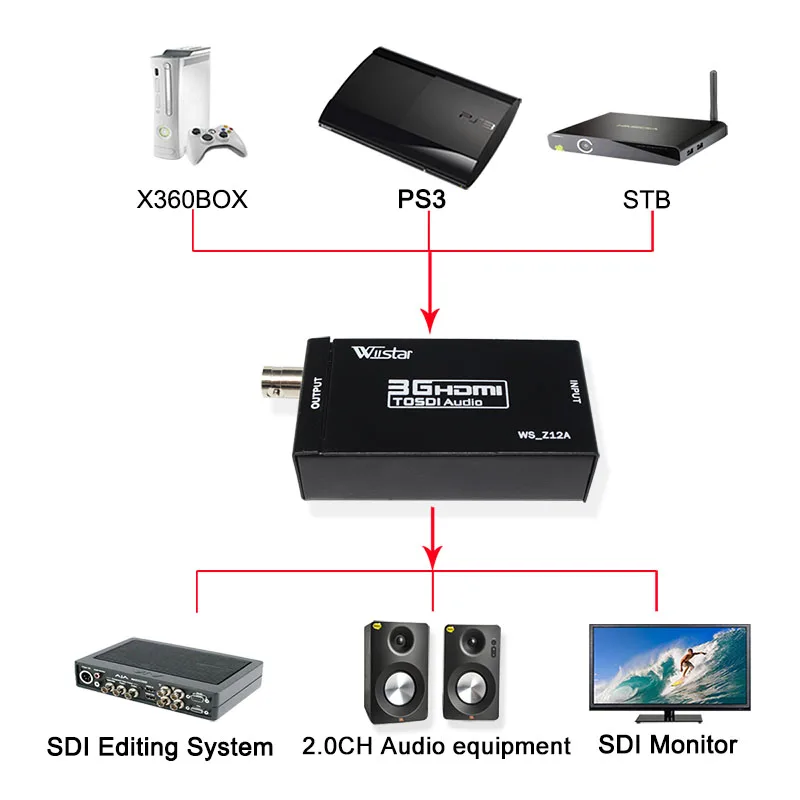

Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
Supports HDMI input timings:
480i/576i, 720p/50/60, 1080i/50/
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Do Not support Broadcast Standard.
*Support optical output port and headphone port
ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)

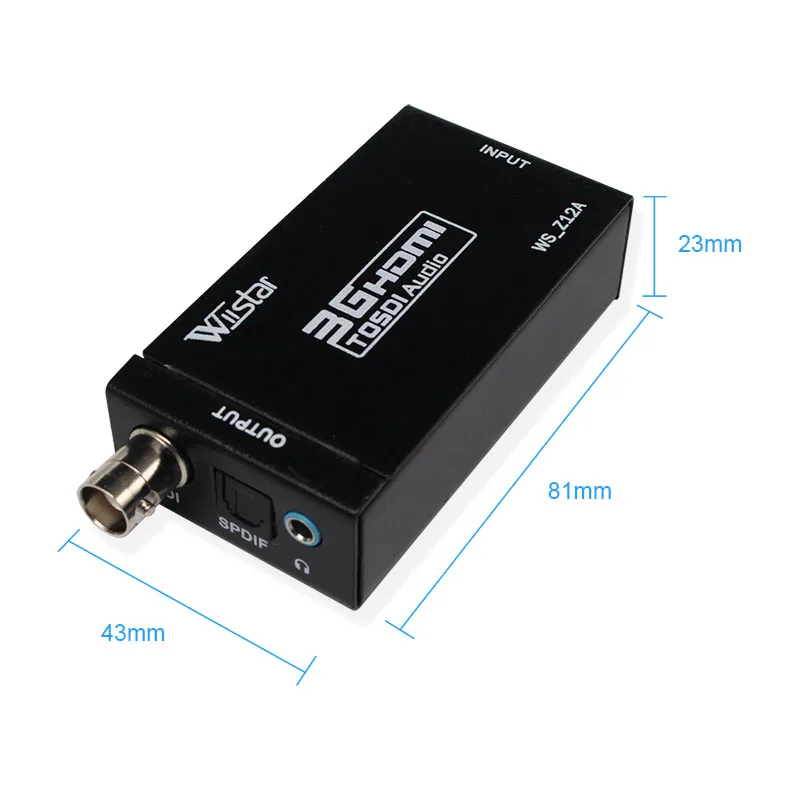

Dimension: 80mm x 41mm x 25 mm
Power Consumption (Max):5W
*Hdmi to sdi converter with Spdif port ,headphone port
*1pcs Operation Manual
*1PCS power adapter

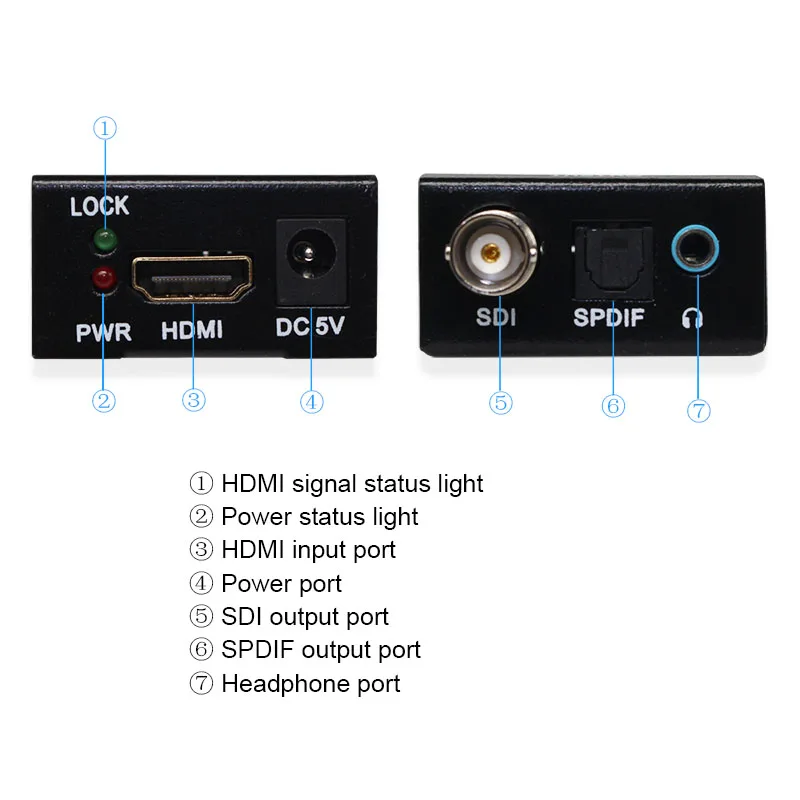

Operation controls and Functions:
SDI-OUT: This slot is where you connect the SDI display with coaxial cable .
DC IN: Plug the 5V-12V DC power supply into the unit.
HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
